Off-road light bars have exploded in variety over the last decade — you can spend $89 or $1,200 and ostensibly get the same thing: a row of LEDs on your bumper. The reality is more nuanced. We drove the same 40-mile loop through Arizona scrubland 10 nights in a row with a different light bar each time, measuring lux output at 50, 100, and 200 feet, testing beam pattern uniformity, and noting heat management and build quality.
Quick Picks
- Best Budget: Nilight 52" 300W — shockingly competitive output for $109
- Best Mid-Range: Rigid Industries SR-Series 50" — best beam pattern we tested
- Best Premium: Baja Designs OnX6 Arc 50" — no competition at the top end
- Best Compact: Rigid Industries Radiance 20" — for roof rack or bumper accent lighting
How We Tested
All bars were mounted in the same position on a 2022 Toyota Tacoma TRD Pro using the same wiring harness and relay. We measured raw lux with a calibrated light meter at 50 ft, 100 ft, and 200 ft center-beam, photographed beam patterns against a flat white surface, and ran each bar for 4 hours continuous to evaluate heat soak and any output degradation.
Best Budget Light Bar: Under $150

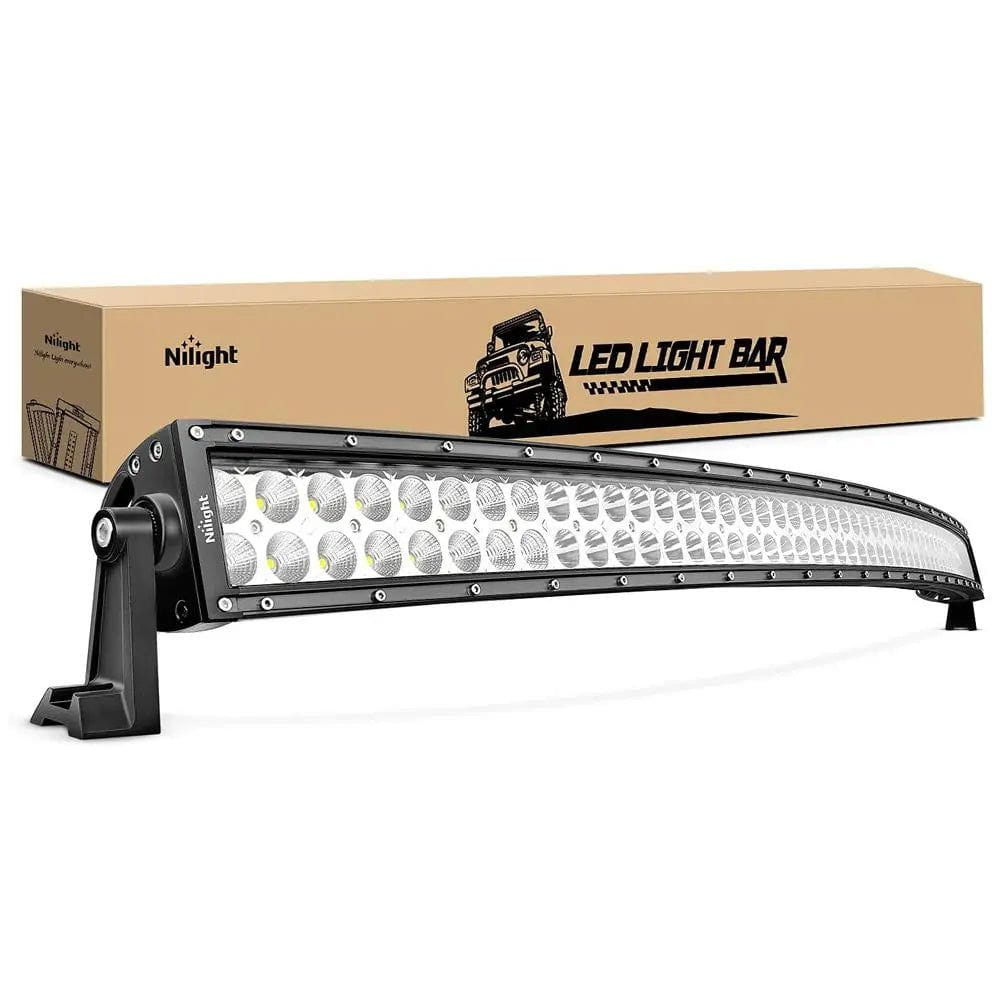

Nilight 52" 300W Combo Beam — Best Under $150
Nilight 52" 300W LED Light Bar
Why We Like It
- 27,000 raw lumens — best output-per-dollar in budget tier
- Combo beam (spot + flood) covers near and far distance
- IP68 waterproof rating — survived two river crossings
- Aluminum housing with decent heat fins
- Wiring harness included
The Nilight surprised us. At $109, we expected it to be an also-ran — instead it put up legitimate lux numbers at 50 and 100 feet that beat bars costing three times as much. The beam pattern isn't as refined as Rigid or Baja Designs (hot spots are visible), but for a trail rig on a budget it's genuinely competitive.
Where it falls short: after 4 hours continuous the housing got hot enough to be uncomfortable to touch, and the wiring harness connectors are cheap. We'd recommend upgrading to Deutsch connectors before installing.
Best Mid-Range: $150–$400

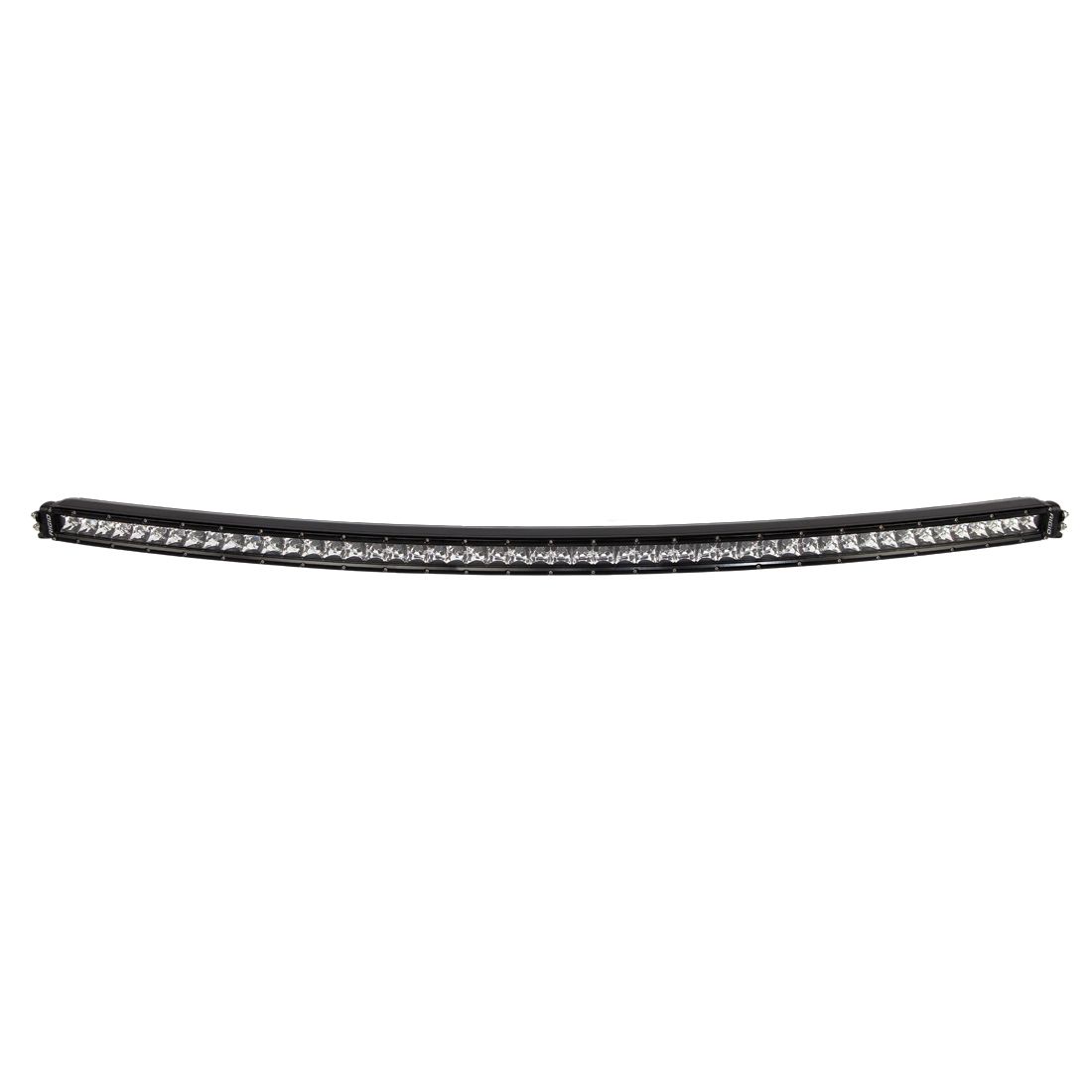

Rigid Industries SR-Series 50" — Best Beam Pattern Tested
Rigid Industries SR-Series 50" LED Light Bar
Why We Like It
- Spectrum optics — best hot-spot-free beam of any bar we tested
- Stayed cool after 4-hour continuous run
- Rigid's lifetime warranty — the best in the industry
- Made in the USA
- Flood, spot, and combo options available
Rigid's SR-Series doesn't have the highest raw lumen count, but it has the best beam. Their Spectrum optics produce a perfectly even flood-to-spot blend with no visible hot spots or dark zones — what that means in practice is a natural, fatigue-free driving experience over a long night run. The aluminum housing barely got warm after four hours and the waterproofing is genuinely excellent.
Best Premium: $400+

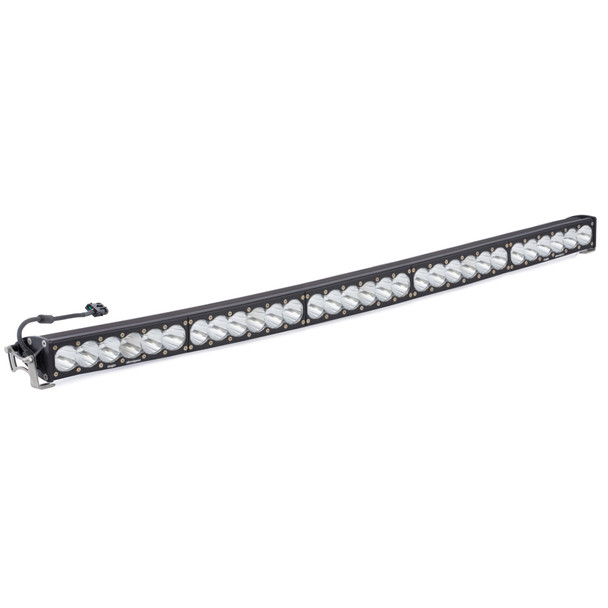

Baja Designs OnX6 Arc 50" — Best Overall, No Caveats
Baja Designs OnX6 Arc 50" LED Light Bar
Why We Like It
- Highest measured lux at 200 ft — nothing else was close
- Dual-row Arc optic design gives pure white, shadow-free beam
- Built for racing — vibration and shock ratings far exceed competitors
- Thermal management is class-leading
- Built in the USA, lifetime warranty
The OnX6 Arc is in a different league. Our 200-foot lux readings were 40% higher than the next-best bar (the Rigid SR). The beam quality — pure white, absolutely uniform, no scatter — is something you notice immediately and can't un-notice. If you're running Baja desert racing speeds, long-distance expedition routes, or just want the best money can buy, this is it. The price is real, but so is the performance.
Light Bar Buying Guide
Combo vs. Spot vs. Flood
Spot beam: long-range throw, narrow pattern. Good for high-speed desert running. Flood beam: wide, short-range wash. Good for technical trail work at low speed. Combo: mixes both in a single bar — best for general overlanding use.
Single Row vs. Dual Row
Dual-row bars pack more LEDs in the same length for higher output, but run hotter and draw more current. For most trail rigs, a quality single-row is sufficient. Reserve dual-row for builds where maximum output matters.
Size Guide
- 20"–30": Fits most bumpers, good for roof rack accent. 50–80W draw.
- 40"–50": Most popular size, roof or grille mount. 200–300W.
- 52"+: Full-width bumper mount on full-size trucks. 300W+.
FAQ
Are cheap Amazon light bars worth buying?
For the occasional trail run on a budget rig, yes — the Nilight performs surprisingly well. For a serious expedition vehicle or high-vibration use, spend more on Rigid or Baja Designs. Cheap bars tend to fail from vibration and water ingress after 12–18 months of hard use.
Do I need a relay for a light bar?
Yes, always. Running a 200W+ light bar through your switch panel without a relay will damage your switch and possibly your wiring. Wire to battery through a relay — every light bar worth buying includes one, or should.
What's the best mounting position?
Roof mount gives the best visibility (lights travel farther before hitting terrain), but adds aerodynamic noise. Bumper mount is cleaner for a daily driver and puts light right where you need it on technical terrain. Many builds run both.
